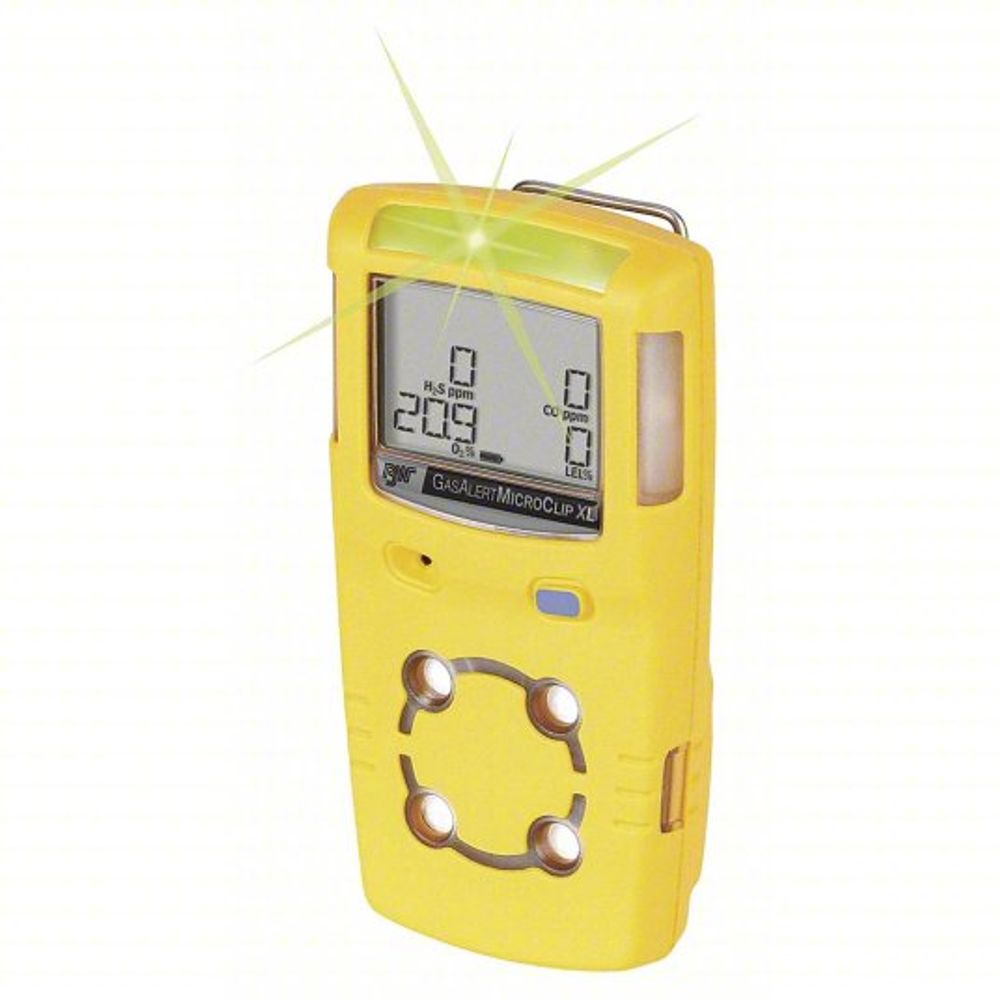

HONEYWELL Multi-Gas Detector: IP68, HONEYWELL BW BW MicroClip, Sampling Pump, CO/H2S/O2, BW, 2 yr
SKU: MCXL-XWHM-Y-NAProduct Details
Catalog Page1731
BrandHONEYWELL
IP RatingIP68
Brand & SeriesHONEYWELL BW BW MicroClip
Replaceable BatteryYes
Rechargeable BatteryYes
Sensor Life2 yr
Product TypeMulti-Gas Detector
Power SourceBattery
Display Screen TypeLCD
IncludesCalibration Cap and Hose; Concussion Proof Housing; Multi-Language CD Manual; Screwdriver; Stainless Steel Alligator Clip
Measurement Range0 to 5% vol; Carbon Monoxide (0 to 500 ppm); Hydrogen Sulfide (0 to 100 ppm); LEL 0 to 100%; Oxygen (0 to 30% vol)
FeaturesExtended Battery Life, Especially in Cold Weather; One Button Operation; Slim and Compact; Visual Compliance with Flashing Green IntelliFlash
Housing ColorYellow
Hazardous Location SpecificationClass I, Div 1, Group A, B, C, D
Gas Detected
- Carbon Monoxide
- Combustible Gas
- Hydrogen Sulfide
- Oxygen
Alert TypeLight; Sound; Vibration
Battery Life18 hr
Communication Technology
- Infrared
- PC-Compatible Interface
Battery Size3.7V
Temperature CodeT4
Overall Depth1.2 in
Resolution1% LEL; Carbon Monoxide 1 ppm; Hydrogen Sulfide 1 ppm; Oxygen 0.1% vol
StandardsATEX CE Ex II 1G Ex ia IIC T4 Ga; CE Certified; CSA Certified; IECEX: Ex ia IIC T4 Ga
Overall Width2.4 in
Overall Height4.4 in
Includes BatteriesYes
Mounting LocationPortable/Handheld
Mount TypePortable/Handheld
Minimum Operating Temperature-4 °F
Maximum Operating Temperature122 °F
Manufacturer Warranty Length2 yr
Includes ChargerYes
Display TypeDigital
Alarm Setting AdjustmentAdjustable Alarm Setting
SeriesBW MicroClip
Sub-brandGasAlertMicroClip XL
Manufacturer Part NumberMCXL-XWHM-Y-NA
UNSPSC41113118
Country of OriginUSA (subject to change)
- Product Description
-
Pumped multi-gas detectors actively pump sampled air through a tube or wand to determine if an area is safe to enter. This type of detector is commonly used in confined space applications.
